A1:

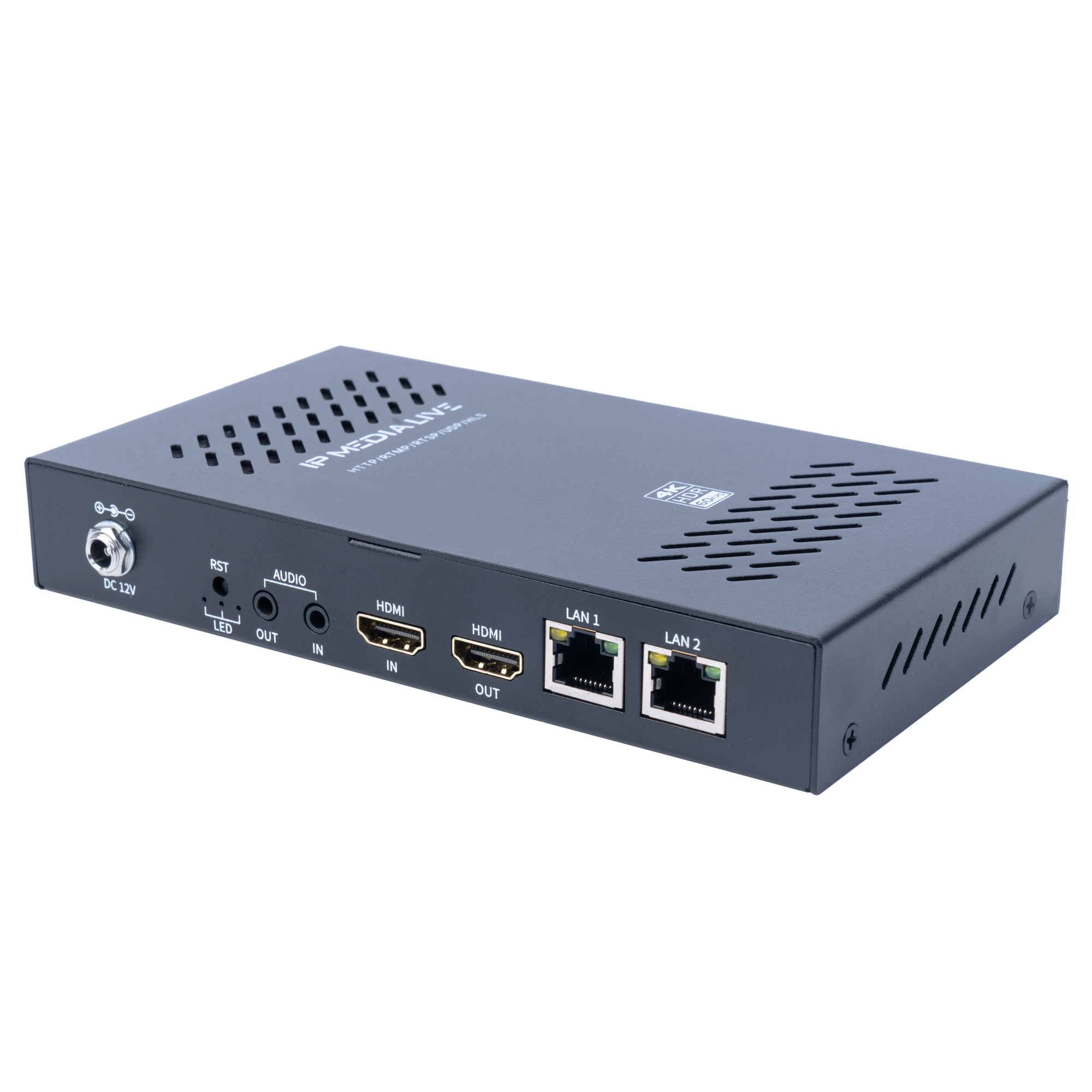

1channel up to 4K-4096*2160 60fps HDMI input, 1channel audio input.1 channel audio output
2channels IP output(Lan2 for data,Lan1 for MGR)
Dual streams output:4K 60FPS +1080 60FPS
Support HDMI 2.0,HDCP 2.2,HDR
H.265/ H.264 format, Audio: MP3, AAC, G711 format.
Configuration could be freely adjusted according to the need.
Support SRT/HTTP / RTSP / RTP/ TCP / RTMP / RTMPS/ UDP / ONVIF / HLS protocols.
Red indicator: power. Yellow: Streaming status. Green: Network
Key features
- Resolution:4096*2160/3840*2160/2560*1600/2560*1440/2048*1152/1920×1080/1680*1056/1280×720/720*576/640*480
- Supports WINDOWS ,LINUX and MAC OS
- Support SRT/ RTSP/ RTP/ RTMP/ RTMPS/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol
- Support Main TS stream and the sub TS stream use in different protocol.
- Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
- Coding Standard: Base line profile/ main profile/high profile(LEVEL 5.1), H.265 main profile LEVEL 5.0
- Audio: MP3, AAC, G.711, sampling rate: 32000,44100, 320000 etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
- Video bitrate Control: CBR / VBR 16KBIT/S ~ 50MBIT / S
- Video packaging: A mode: FFMPEG, B mode: VLC
- Transmission: TCP, UDP, 100M for configuration. 1000M for transmission (RJ45 Duplex network port)
- Support Text/ image OSD, images superimposing.
- Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
- Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
- Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
- Support encoding without video signal;
- Low power consumption design.
Specification
Product model |
A1 HDMI 4K 60fps Encoder |
Input |
1Channel HDMI input, 1 Channel audio input |
Output |
2 ch IP signal output,1 ch HDMI loop out,1 ch Audio out |
Video |
Input resolution |
Up to 4096*2160 s |
Coding standard |
H.265/ H.264 |
Coding level |
H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE |
Encoded size |
640*360~3840*2160 |
Video bit rate |
Rate control: CBR/VBR 16KBIT/S~50 MBIT/S |
Video frame rate |
4K 60fps(maximum) |
OSD |
Text, Image |
Audio |
Input selection |
1 channel embedded audio hdmi, 1 channel 3.5MM Line-in audio, support audio gain |
Audio coding |
AAC/ MP3/ G.711 |
Audio bit rate |
24Kb/s~320Kb/s |
Sampling rate |
24000,32000,44100,48000,64000,256000 320000 etc |
IP output |
2 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream) |
System |
Network protocol |
SRT,HTTP, RTSP, RTMP, RTMPS,ONVIF, HLS, UDP multicast, unicast |
Configuration management |
User interface, remote upgrade, multi-one management platform |
|
Power supply |
12V~2A |
power consumption |
5W |
Size |
178mm * 102mm * 27mm(L*W*H) |
Operating temperature |
-20℃+ 60℃ |
Working humidity |
<90%,Non-condensing |
Weight |
0.5KG |
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check |
